SAE Fuel Line Quick Connectors: Specifications, Applications, and Reliable Supply

When it comes to automotive and industrial fluid systems, SAE fuel line quick connectors provide a safe, fast, and leak-proof way to connect fuel hoses, nylon tubes, or urea (DEF) pipes. These connectors are widely used in cars, motorcycles, trucks, and off-road machinery, ensuring smooth fuel delivery and easy maintenance.

In this article, we will introduce several popular types of SAE quick connectors, explain their specifications, applications, and why choosing the right supplier makes a difference.

1. SAE 7.89mm Quick Connector – Compact and Reliable

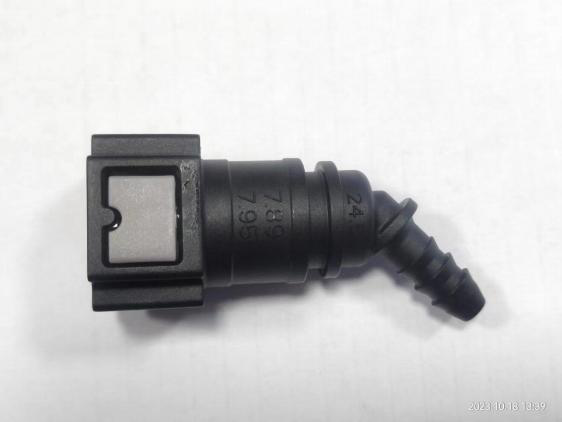

Figure 1. SAE 7.89mm 135 degree fuel line quick connector for motorcycles and small engines.

• Outer Diameter: 7.89mm
• Compatible Tube ID: 6mm / 8mm
• Material: PA (nylon) reinforced plastic
• Angle Options: 0° straight / 90° elbow / 45° angled / 135° angled

This size is widely used in small displacement engines and motorcycles, as well as low-pressure automotive fuel lines. The compact design reduces installation space while ensuring a strong sealing performance.

Keyword focus: SAE 7.89 fuel line connector, nylon tube quick connector automotive.

2. SAE 7.89 9.49mm 135° Quick Connector – Versatile for Cars and Trucks

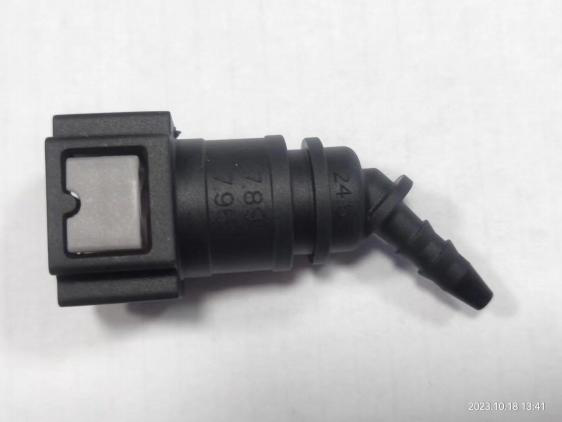

Figure 2. SAE 7.89 9.49mm 135° elbow connector, widely used in automotive fuel systems.

• Outer Diameter: 7.89 9.49mm
• Compatible Tube ID: 8mm / 10mm / 12mm
• Designs: Straight, elbow, T-shape
• Applications: Fuel supply, diesel return line, EV cooling system

This type is one of the most common connectors in passenger cars. Whether it’s gasoline or diesel systems, the 9.49mm quick connector provides excellent durability. It is also widely adopted in urea/DEF delivery for SCR systems in trucks.

Keyword focus: SAE 9.49 quick connector fuel line, diesel fuel hose connector SAE.

3. SAE 7.89 9.49mm 11.80mm 135° Elbow Quick Connector – Heavy-Duty Performance

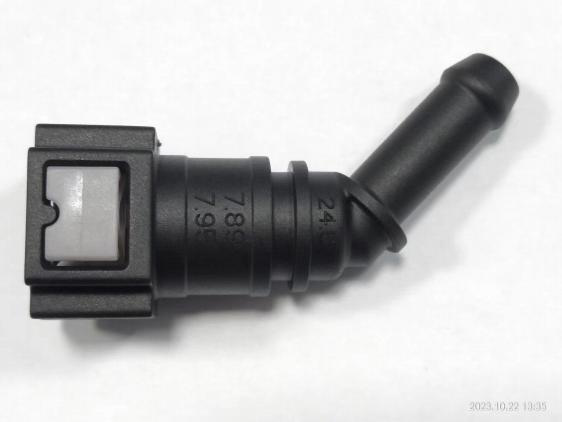

Figure 3. SAE 7.89 9.49mm 11.80mm 135° Elbow quick connector for heavy-duty machinery.

• Outer Diameter: 11.80mm
• Compatible Tube ID: 10mm / 11mm
• Strengths: Withstand higher flow and pressure
• Industries: Construction machinery, agricultural equipment, heavy trucks

This connector is ideal when larger fuel flow is required, for example in heavy-duty diesel engines or construction equipment. It ensures safety and easy disassembly during maintenance.

Keyword focus: SAE 11.80 quick coupling, fuel hose connector for heavy machinery.

4. SAE 7.89 9.49mm 11.80mm 15.82mm Large Bore 90° Quick Connector – Large Bore for Industrial Use

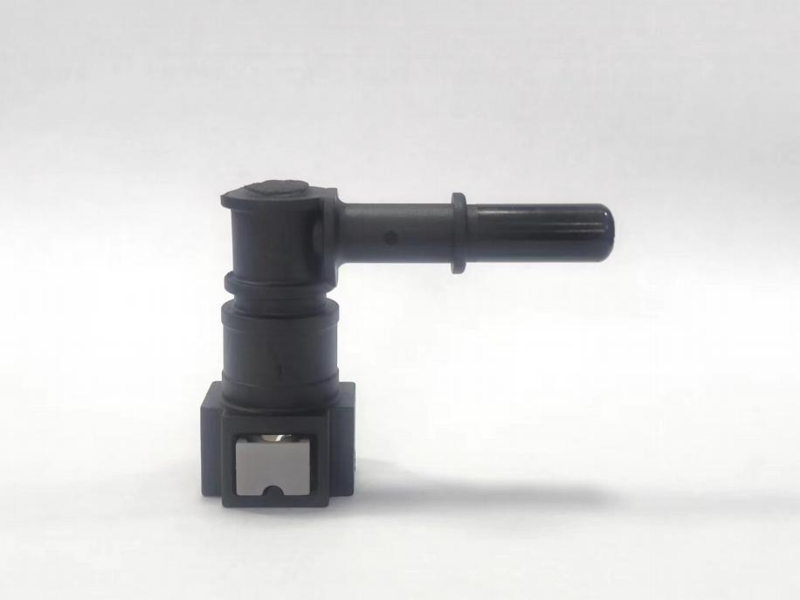

Figure 4. SAE 7.89 9.49mm 11.80mm 15.82mm Large Bore 90° connector with larger flow capacity for trucks and industrial engines.

• Outer Diameter: 15.82mm
• Compatible Tube ID: 14mm / 16mm / 21mm
• Special Options: With shut-off valve, T-shaped connector, threaded adaptor
• Applications: Industrial engines, generator sets, buses, large trucks

The 15.82mm quick connector is designed for high-capacity fuel and urea lines. With optional integrated valves, it prevents fuel leakage during disconnection, making it suitable for industrial and off-road vehicles.

Keyword focus: SAE 15.82 plastic quick connector, large bore fuel line connector.

5. SAE Multi-Variant Connectors for Flexible Systems

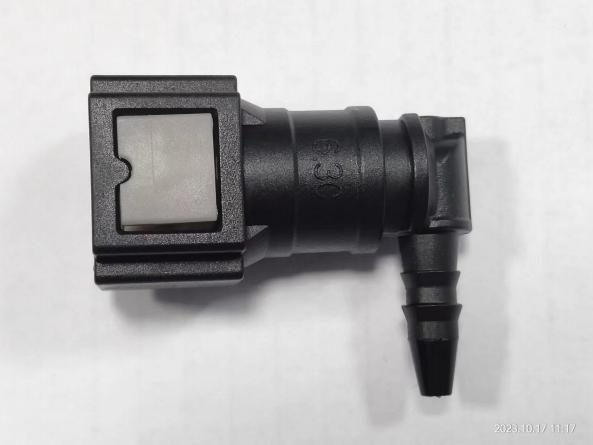

Figure 5. SAE quick connector variant for nylon fuel tubes and urea (DEF) lines.

We also provide multi-variant connectors, including threaded adaptors, cross connectors, and custom-designed fittings for OEM projects. This ensures compatibility with a wide range of fuel and urea delivery systems.

Why Choose Our SAE Quick Connectors?

• Full Range of SAE Sizes: 7.89mm, 9.49mm, 11.80mm, 12.61mm, 15.82mm, 18.9mm and more.
• Durable Materials: PA66, PA12 reinforced plastic, resistant to fuel, diesel, DEF, and high temperature.
• OEM Experience: Widely supplied to automotive manufacturers and aftermarket distributors.
• Global Supply: Fast delivery and export service for customers worldwide.

Conclusion

If you are sourcing SAE fuel line quick connectors for cars, motorcycles, or industrial machinery, choosing the right specifications is essential for safety and efficiency. Our factory provides standard and customized SAE connectors to meet your specific project requirements.

Also can download our catalogue in the Catalogue section.
